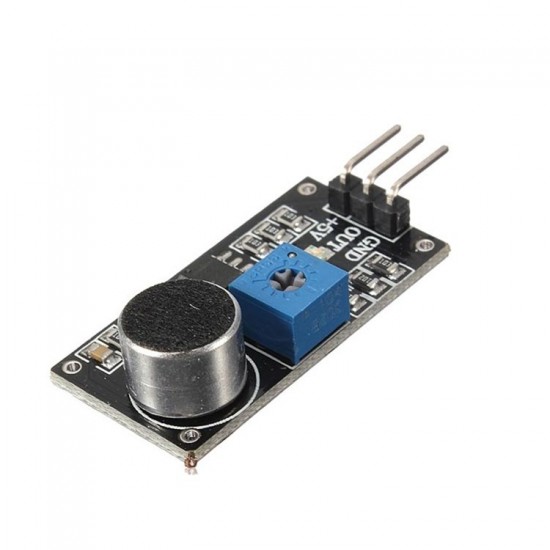

KY-038 | Microphone Sound Sensor Module
Need help choosing?Call (+356) 2744 3236 · Mon–Sat 9:00–19:00
WhatsApp us
KY-038 Noise / Sound Sensor Threshold Module

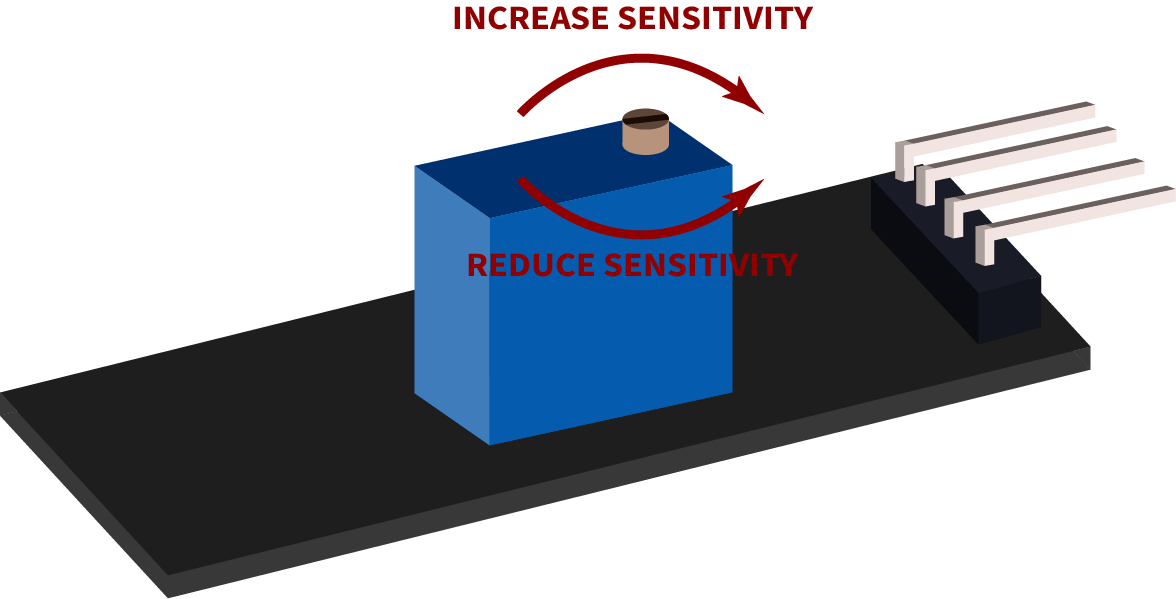

This sensor is ideally suited for threshold value measurement. This means that the sensor emits a digital high signal as soon as a threshold value set by the user on the rotary potentiometer is exceeded. It should be noted here that the digital signal is a comparison of the value set on the rotary potentiometer and the measured value on the sensor, which are then compared by the LM393 comparator installed on the board. The set value of the rotary potentiometer is the threshold value, which is used to define a logical high signal.
Digital output
If the sound level is above the set threshold value, a signal is output here
Analog output
Direct measured value of the sensor unit
LED1
Indicates that the sensor is supplied with voltage
LED2
Indicates that the sound level has exceeded the set threshold value
FUNCTIONALITY OF THE SENSOR
This sensor has two functional components on its circuit board: The front sensor unit, which physically measures the environment and outputs it as an analog signal to the second unit, the comparator. The comparator compares the measured value of the sensor with the value set on the rotary potentiometer and outputs a logical high signal on the digital pin and LED L1 if the value on the rotary potentiometer is exceeded.
Please note: The signal is inverted. If a high value is measured, this results in a lower voltage value at the analog output.
PIN ASSIGNMENT
| ARDUINO | SENSOR |
|---|---|
| 5V | +V |
| GND | GND |
| Pin 3 | Digital Signal |
| Pin A0 | Analog Signal |
CODE EXAMPLE
The program reads the current voltage value, which can be measured at the analog output, and outputs it on the serial port. In addition, the status of the digital pin in the console is also indicated, which means whether the limit has been exceeded or not.
To load the following code example onto your Arduino, we recommend using the Arduino IDE. In the IDE, you can select the appropriate port and board for your device.
Copy the code below into your IDE. To upload the code to your Arduino, simply click on the upload button.
// Declaration and initialization of the input pins
int analog_input = A0; // Analog output of the sensor
int digital_input = 3; // Digital output of the sensor
void setup () {
pinMode(analog_input, INPUT);
pinMode(digital_input, INPUT);
Serial.begin(9600); // Serial output with 9600 bps
Serial.println("KY-038 Noise detection");
}
// The program reads the current values of the input pins
// and prints them to the serial output
void loop () {
float analog_value;
int digital_value;
// Current values are read out, converted to the voltage value...
analog_value = analogRead(analog_input) * (5.0 / 1023.0);
digital_value = digitalRead(digital_input);
//... and printed at this point
Serial.print("Analog voltage value: ");
Serial.print(analog_value, 4);
Serial.print(" V, t Threshold value: ");
if (digital_value == 1) {
Serial.println("reached");
}
else {
Serial.println("not yet reached");
}
Serial.println("----------------------------------------------------------------");
delay(1000);
}What our customers say
