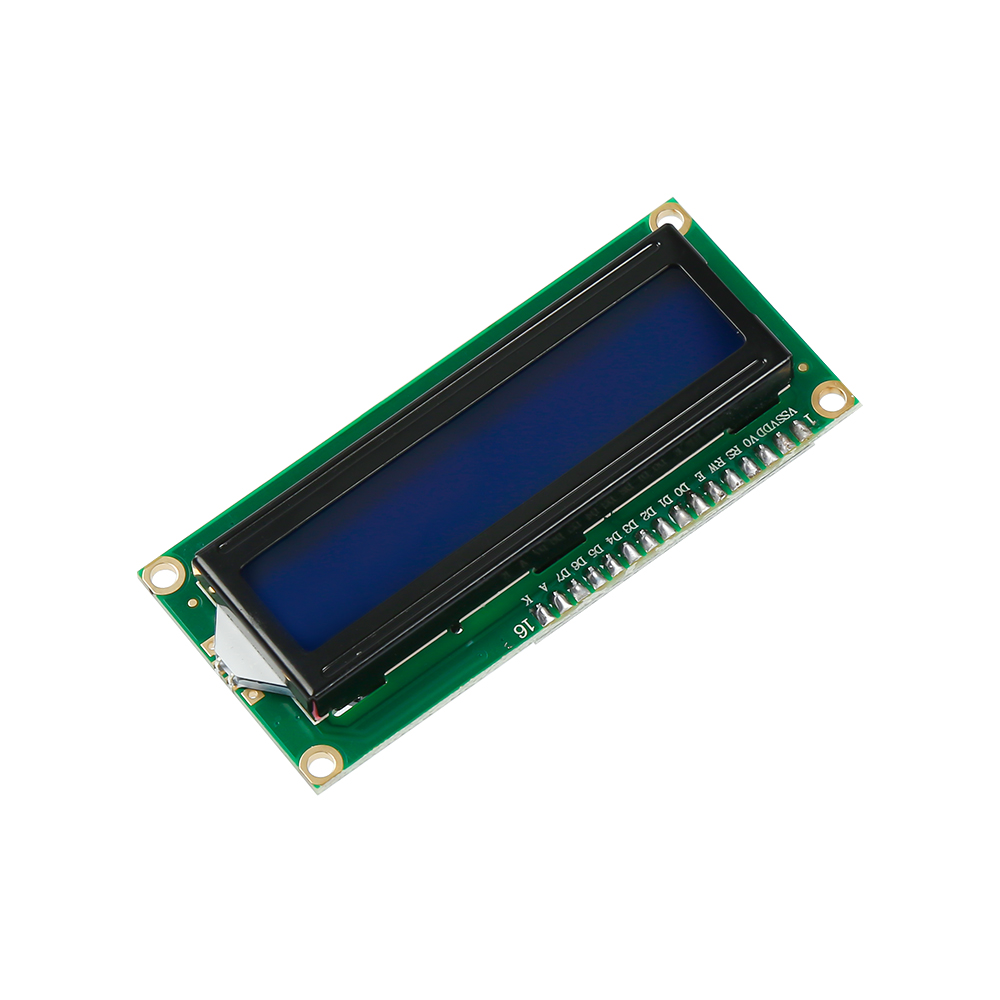

LCD1602 IIC/I2C Blue Backlight
Need help choosing?Call (+356) 2744 3236 · Mon–Sat 9:00–19:00
WhatsApp us
| BRAND: ACEBOTT |
LCD (Liquid Crystal Display) is a passive display, that is, the liquid crystal itself does not emit light, it needs a backlight to provide background brightness, the use of electric fields to control the arrangement of liquid crystal molecules, so as to change the transmission of light and block, to achieve image display.

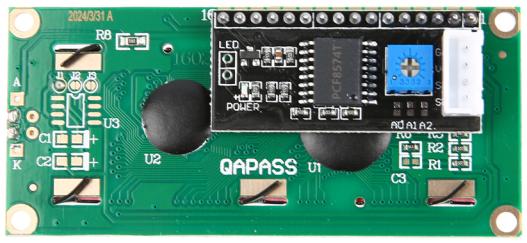

LCD 1602 I2C Module As the name suggests, this module is a 16 character x2 line LCD display module (can display 32 ASCII characters), and with an I2C communication interface module, the default I2C address 0x27, with a blue potentiometer on the back. Can be used to adjust the backlight (when the character display is not clear, you need to adjust the backlight to make the character display clearly).
Application reference: This module can be used for data display of control panel, electronic scale, electronic clock, etc.

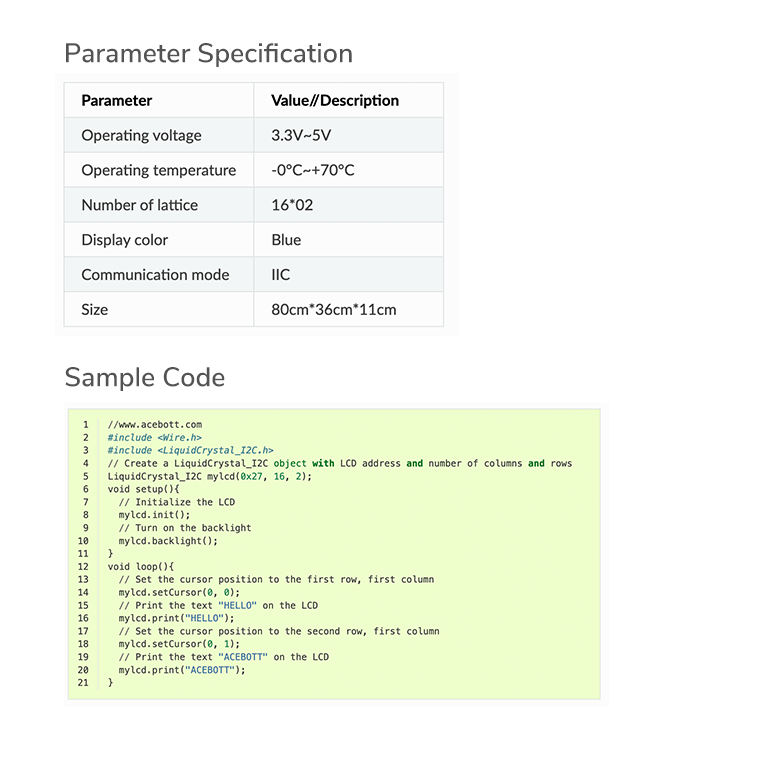

2.Parameter Specification
| Parameter | Value//Description |
|---|---|
| Operating voltage | 3.3V~5V |
| Operating temperature | -0°C~+70°C |
| Number of lattice | 16*02 |
| Display color | Blue |
| Communication mode | IIC |

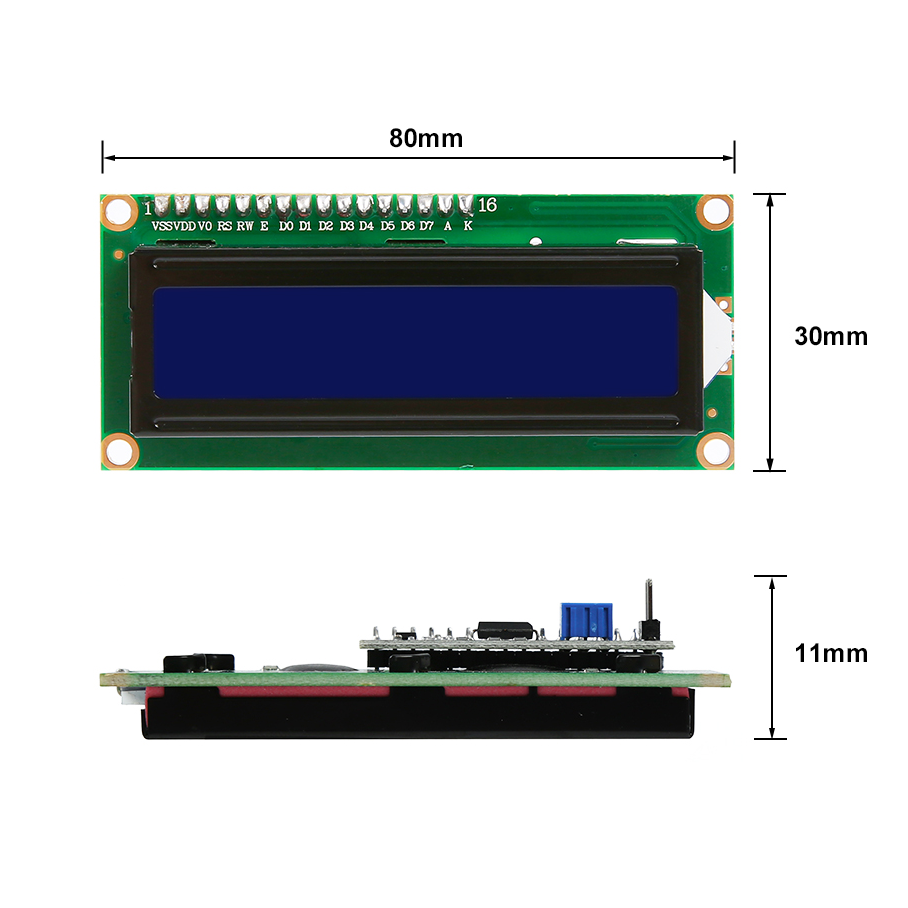

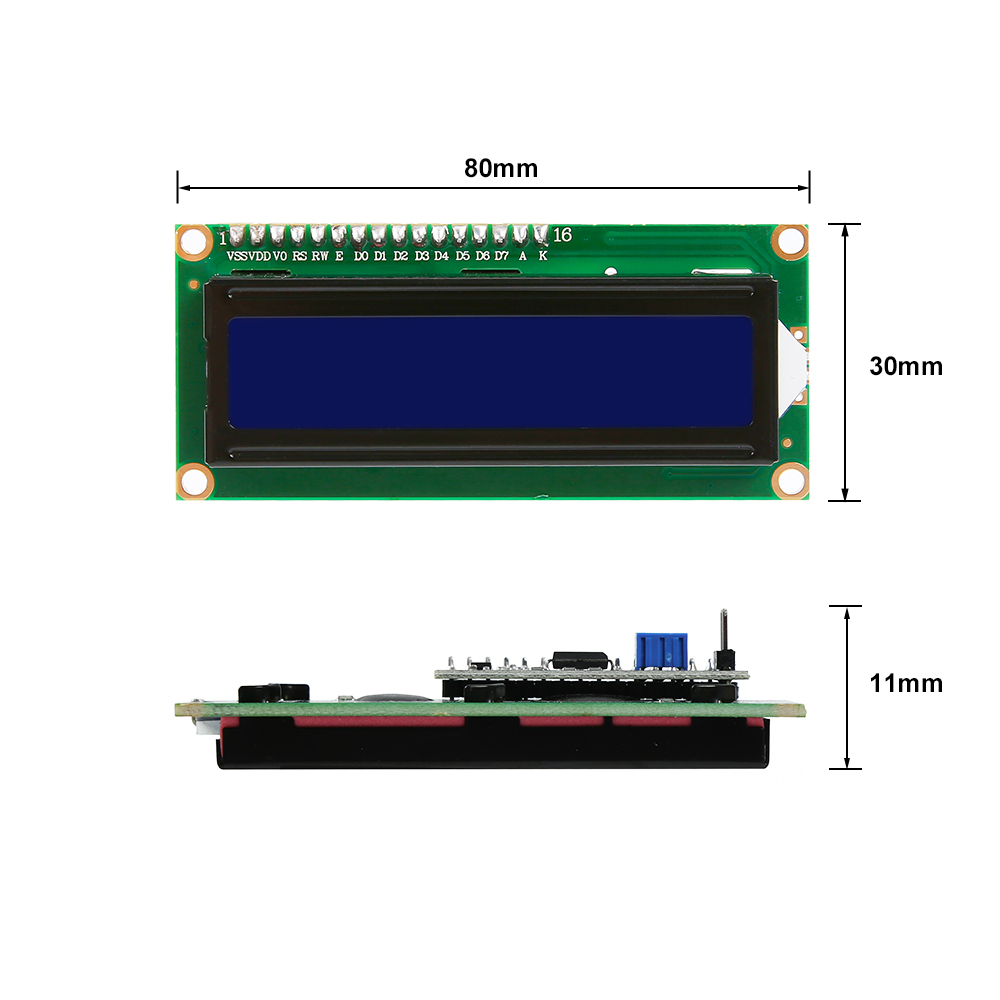

| Size | 80cm*36cm*11cm |

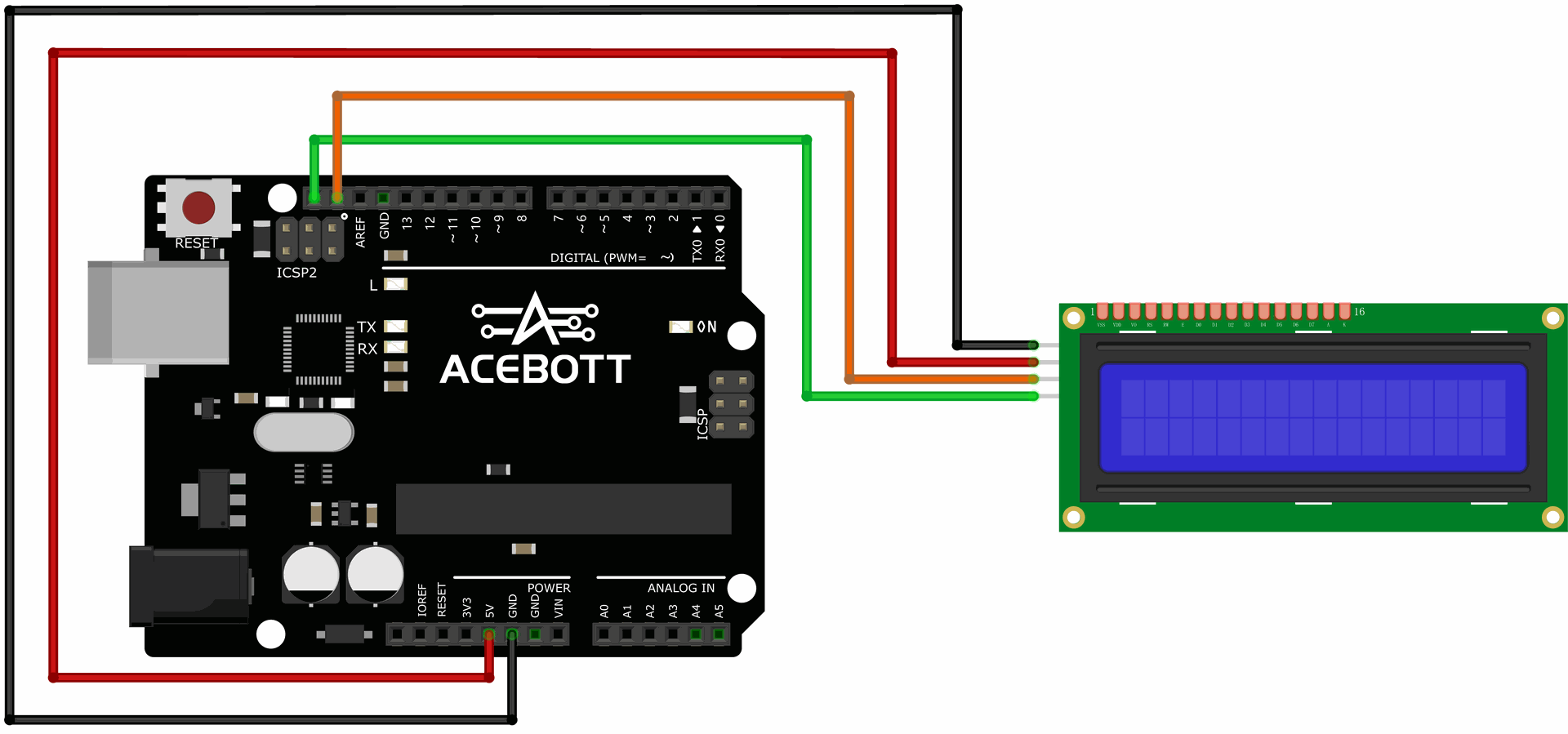

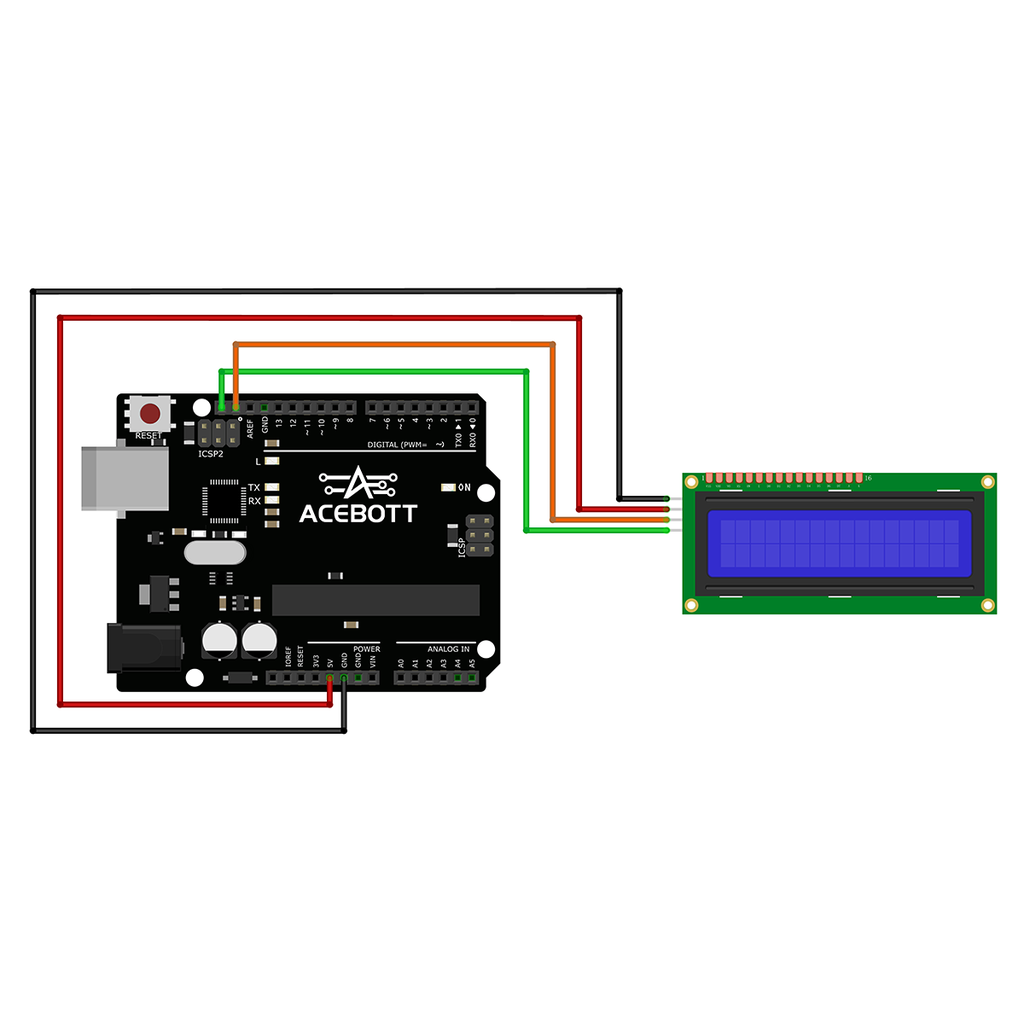

3.Wiring Diagram
| LCD 1602 I2C Module | UNO |
|---|---|
| VCC | 5V |
| GND | GND |
| SCL | SCL |
| SDA | SDA |
4.Sample Code
//www.acebott.com
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
// Create a LiquidCrystal_I2C object with LCD address and number of columns and rows
LiquidCrystal_I2C mylcd(0x27, 16, 2);
void setup(){
// Initialize the LCD
mylcd.init();
// Turn on the backlight
mylcd.backlight();
}
void loop(){
// Set the cursor position to the first row, first column
mylcd.setCursor(0, 0);
// Print the text "HELLO" on the LCD
mylcd.print("HELLO");
// Set the cursor position to the second row, first column
mylcd.setCursor(0, 1);
// Print the text "ACEBOTT" on the LCD
mylcd.print("ACEBOTT");
}5.Test Result
After you have successfully connected the line according to the wiring diagram and successfully uploaded the correct program.
Your lcd screen will light up with “HELLO” on the first line and “ACEBOTT” on the second line.
Hint
If the lcd screen cannot display characters normally, check whether the line is connected correctly and adjust the sliding rheostat behind to adjust the backlight.
6.Related Resources
