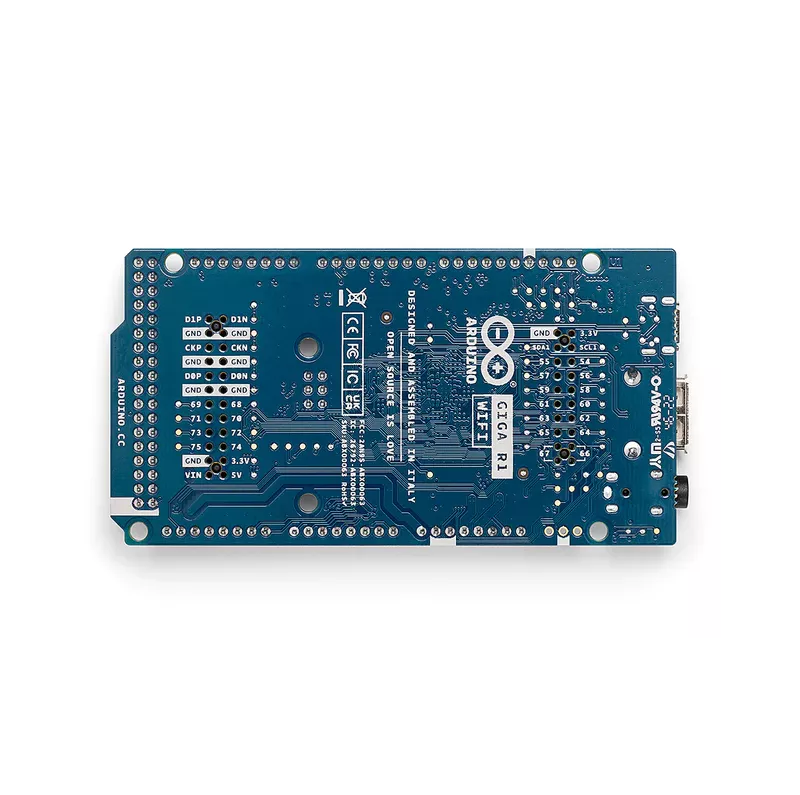

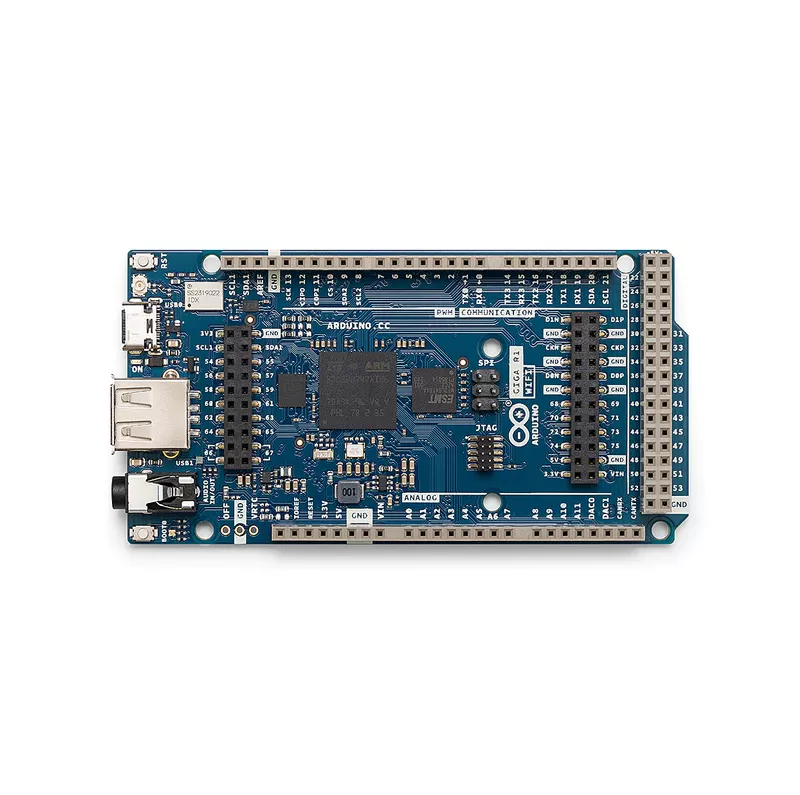

Arduino GIGA R1 Wi-Fi
| BRAND: ARDUINO |
Features
STM32H747XIH6 Dual Core Microcontroller
32-bit Arm Cortex-M7 core with double precision FPU and L1 cache up to 480 MHz
32-bit Arm Cortex-M4 core with FPU up to 240 MHz
Murata 1DX Wi-Fi/Bluetooth Module
Wi-Fi 802.11b/g/n 65 Mbps
Bluetooth Low Energy (version 5.X via Cordio stack, version 4.2 via Arduino stack)
Micro UFL connector for external antenna
Memory STM32H747XI: 2 MB Flash and 1 MB RAM
AT25SF128A-MHB-T: 16 MB NOR Flash
AS4C4M16SA: 8 MB SDRAM
x76 Digital I/O pins
x12 Analog Input Pins: 12
x12 PWM Pins: 12
x2 Analog Output Pins (DAC0/DAC1): 2
VRTC: to power the RTC when the board is turned off
OFF Pin: To turn off the board
x4 UART
x3 I2C
x2 SPI
Display: D1N, D0N, D1P, D0P, CKN, CKP, D68-D75
Audio jack: DAC0, DAC1, A7
JTAG connector
USB 2.0 A (host interface, to connect to your non-computer peripherals)
USB-C (for programming and power)
Power supply via USB-C (5V) or VIN pin (6-24V)
Circuit operating voltage : 3.3V
Continuous current per I/O pin: 8 mA
CAN (external transceiver required)
Secure Element Module ATECC608A-MAHDA-T
Camera: 20-pin camera connector Arducam
Allows for micropython execution
Dimensions: 53 x 101 mm
