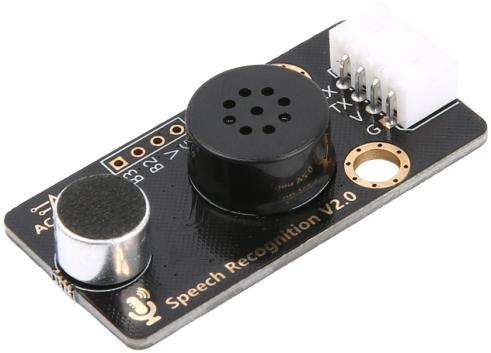

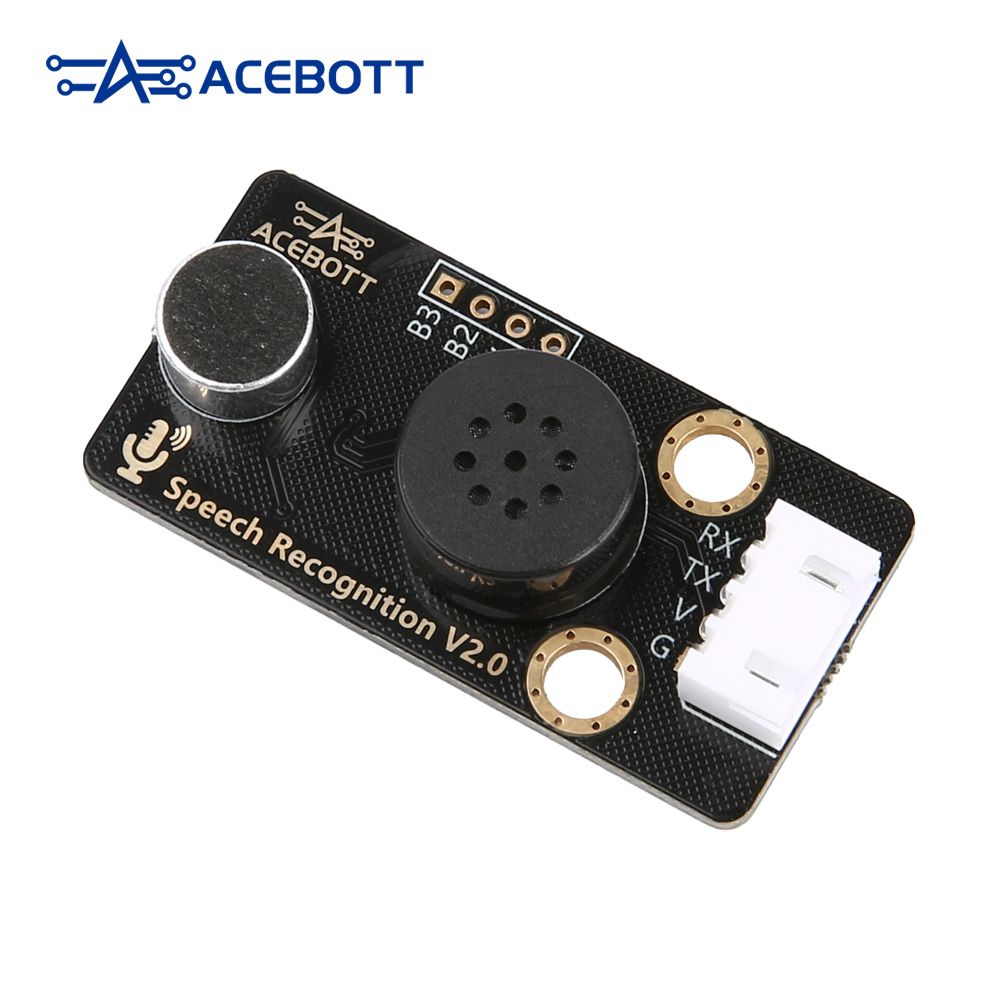

ACEBOTT Speech Recognition v2.0
1. Product Introduction
The ACEBOTT Speech Recognition v2.0 module adds hands-free voice commands to your projects. It can recognize up to 80 predefined commands, making it a great fit for home automation, robotics, and interactive installations. Designed for easy integration with common microcontrollers (Arduino, ESP32, etc.), it exposes a simple serial interface so your code can react to recognized phrases.
2. Features
- Up to 80 built-in commands (no cloud or training required).
- Offline recognition—works without an internet connection.
- UART serial interface for quick integration.
- Compact, low-power module suitable for DIY and education.
3. Parameter Specification
| Parameter | Value / Description |
|---|---|
| Operating voltage | 3.3 V ~ 5 V |
| Interface | UART (TTL) TX / RX |
| Default baud rate | 9600 bps (typical) |
| Recognition capacity | Up to 80 predefined commands |
| Output | Command ID via serial (and/or status byte) |
| Operating temperature | -10 °C ~ +60 °C |
| Typical size | ~3.2 cm × 2.4 cm |

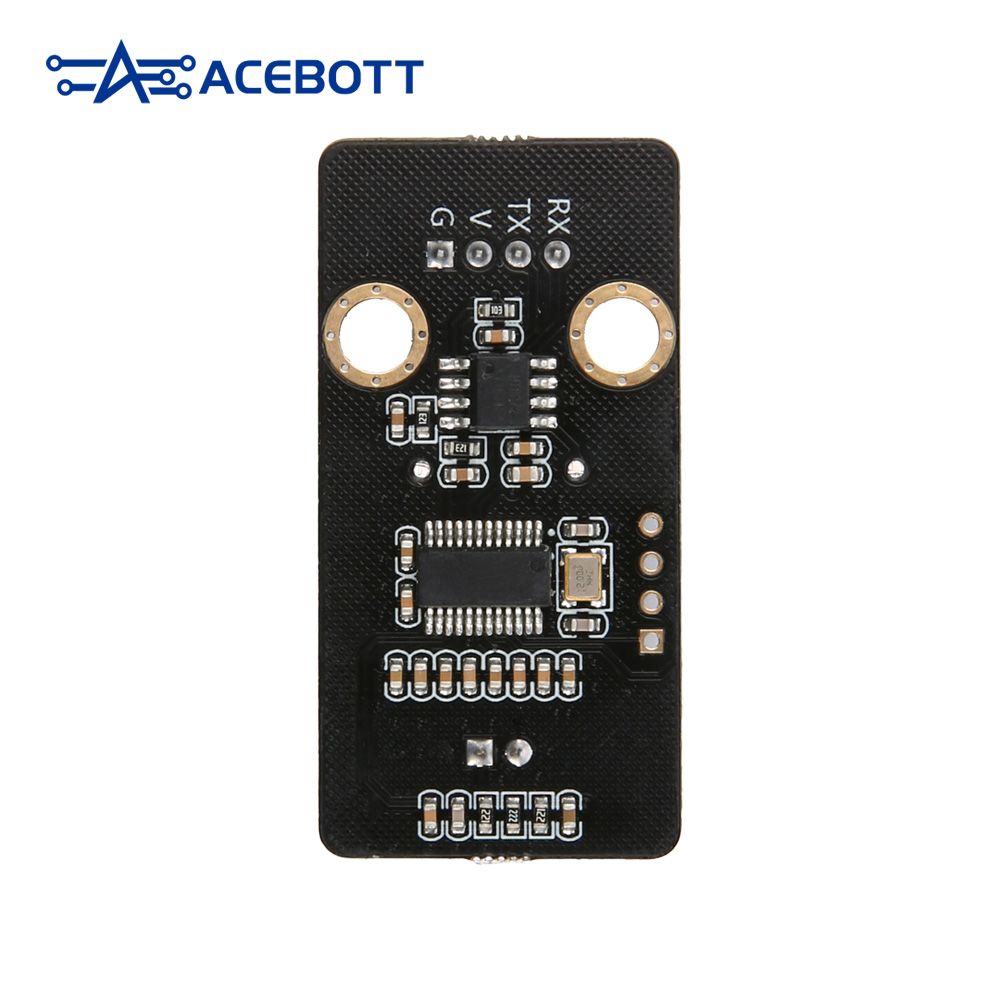

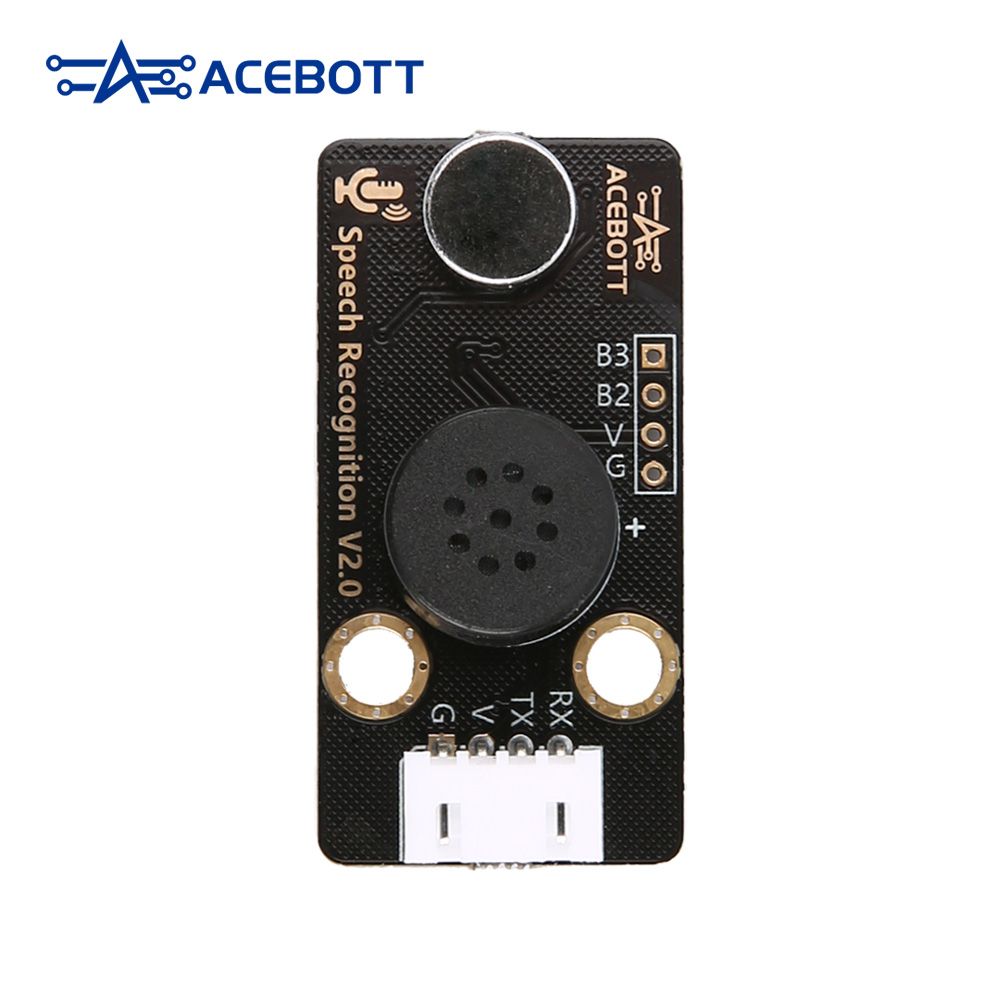

4. Pinout
| Pin | Function |
|---|---|
| VCC | Power input (3.3–5 V) |
| GND | Ground |
| TX | Module → MCU (voice result / status) |
| RX | MCU → Module (configuration / control) |
5. Wiring Example (Arduino UNO)
| Speech Rec v2.0 | Arduino UNO | Notes |
|---|---|---|
| VCC | 5V (or 3.3V) | Match your module’s rating |
| GND | GND | Common ground |
| TX | D2 (SoftwareSerial RX) | Module → Arduino |
| RX | D3 (SoftwareSerial TX) | If module is 3.3 V only, use a simple divider (e.g., 1k/2k) |
Tip: Many voice modules send a short code/ID (e.g.,
1 for “ON”, 2 for “OFF”).
Always check the vendor’s command map to match IDs to phrases.
6. Sample Code (Arduino)
// ACEBOTT Speech Recognition v2.0 – Basic reader
// Connect: Module TX → D2, Module RX ← D3 (use divider if module is 3.3 V)
// Baud: 9600 (typical for many modules)
#include <SoftwareSerial.h>
SoftwareSerial voice(2, 3); // RX, TX
// Example mapping (placeholder) – update to your module's official map.
const char* cmdName(uint8_t id) {
switch (id) {
case 1: return "ON";
case 2: return "OFF";
case 3: return "FORWARD";
case 4: return "BACK";
default: return "UNKNOWN";
}
}
void setup() {
Serial.begin(115200);
voice.begin(9600);
Serial.println("Speech module ready. Say a command...");
}
void loop() {
if (voice.available()) {
uint8_t id = voice.read(); // many modules send a single byte ID
Serial.print("Recognized ID: ");
Serial.print(id);
Serial.print(" → ");
Serial.println(cmdName(id));
// React to commands
if (id == 1) {
// Turn something ON
} else if (id == 2) {
// Turn something OFF
}
}
}7. Test Result
After uploading, open the Serial Monitor (115200). Speak a supported phrase;
the module sends a command ID which the sketch prints (e.g., Recognized ID: 1 → ON).
Update the cmdName() function to match your module’s official command list.
8. What’s in the Box
- 1 × ACEBOTT Speech Recognition v2.0 module
