| BRAND: ACEBOTT |

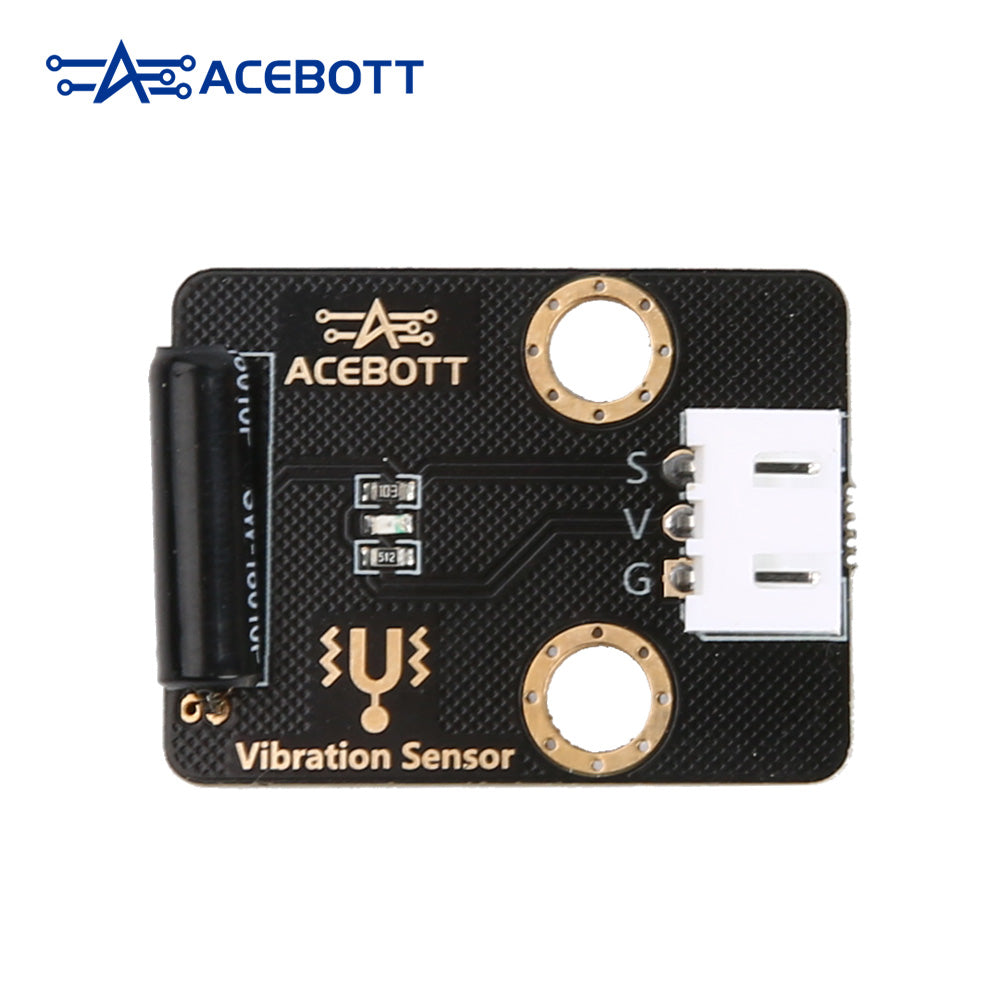

QB070 Vibration Sensor (SW-18010P)
1. Product Introduction
The ACEBOTT QB070 vibration sensor uses the SW-18010P spring-based vibration switch to detect motion from any angle. In a static state the output is typically HIGH; when the sensor experiences shock or vibration the internal spring briefly conducts and the output goes LOW. This makes it ideal for security systems, smart-home triggers, and motion alarms.
2. Parameter Specification
| Parameter | Value / Description |
|---|---|
| Operating voltage | 3.3V ~ 5V |
| Output signal | Digital (HIGH = idle, LOW = vibration) |
| Sensor core | SW-18010P non-directional vibration switch |
| Interface | VCC / GND / S (signal), 3-pin Easy-Plug |
| Typical module size | 3.16 cm × 2.38 cm |
3. Wiring Diagram
| QB070 Vibration Sensor | Arduino UNO |
|---|---|
| VCC | 5V (or 3.3V) |
| GND | GND |
| S | D7 |
Note: Mechanical vibration switches can “bounce”, producing multiple rapid pulses for a single knock.
Use simple debouncing (see code) or trigger on edges with a cooldown.
4. Sample Code (debounced)
// www.acebott.com
const int VIB_PIN = 7; // Signal pin from QB070
const unsigned long COOLDOWN = 80; // ms debounce/cooldown
int lastLevel = HIGH;
unsigned long lastTriggerMs = 0;
void setup() {
pinMode(VIB_PIN, INPUT_PULLUP); // Idle HIGH, goes LOW on vibration
Serial.begin(9600);
}
void loop() {
int level = digitalRead(VIB_PIN);
// Detect HIGH -> LOW transition with cooldown
if (lastLevel == HIGH && level == LOW) {
unsigned long now = millis();
if (now - lastTriggerMs > COOLDOWN) {
Serial.println("Vibration detected!");
lastTriggerMs = now;
}
}
lastLevel = level;
delay(5);
}5. Test Result
After uploading the sketch and opening the Serial Monitor (9600 baud), a tap or movement of the sensor
prints Vibration detected!. Idle state produces no messages.
Tips
- If your module inverts the logic, remove
INPUT_PULLUPand use an external pull-down, or flip the condition. - For interrupt-based detection, connect
StoD2orD3on UNO and useattachInterruptonFALLING. - Mount the board firmly; excessive flex can cause false triggers.
