ACEBOTT Ultrasonic Nebulizer Humidifier ModuleEasy-Plug
Need help choosing?Call (+356) 2744 3236 · Mon–Sat 9:00–19:00
WhatsApp us
| BRAND: ACEBOTT |

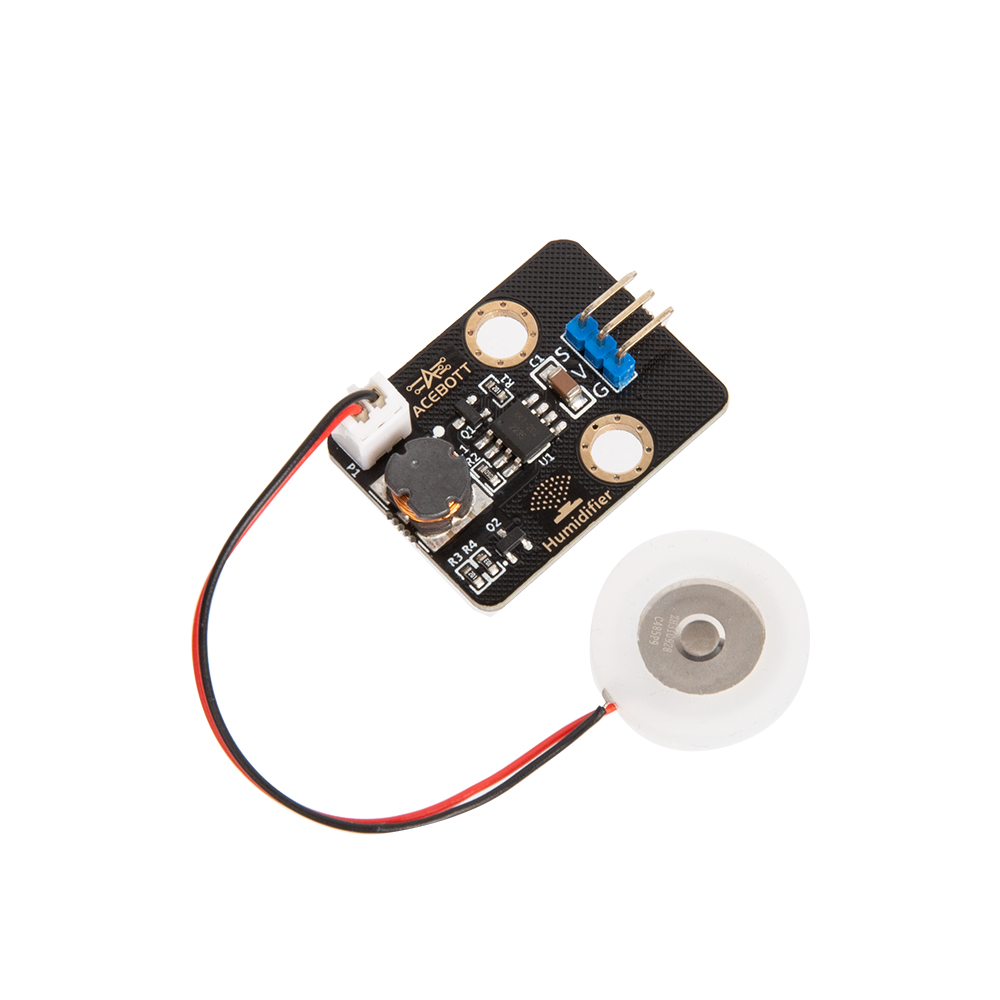

Humidifier (Ultrasonic Atomizer) Module
1. Product Introduction
The humidifier module includes a driver board and a microporous atomizing plate made from a piezoelectric ceramic ring bonded to a metal disc. The driver outputs PWM to excite the piezo at high frequency, vibrating the metal plate so water is ejected through thousands of micro-holes, forming 4–6 μm droplets (visible mist).
2. Parameter Specification
| Parameter | Value / Description |
|---|---|
| Operating voltage | 5V |
| Operating temperature | -20°C ~ +70°C |
| Control signal | Falling edge trigger |
| Size | 3.16cm × 2.38cm |

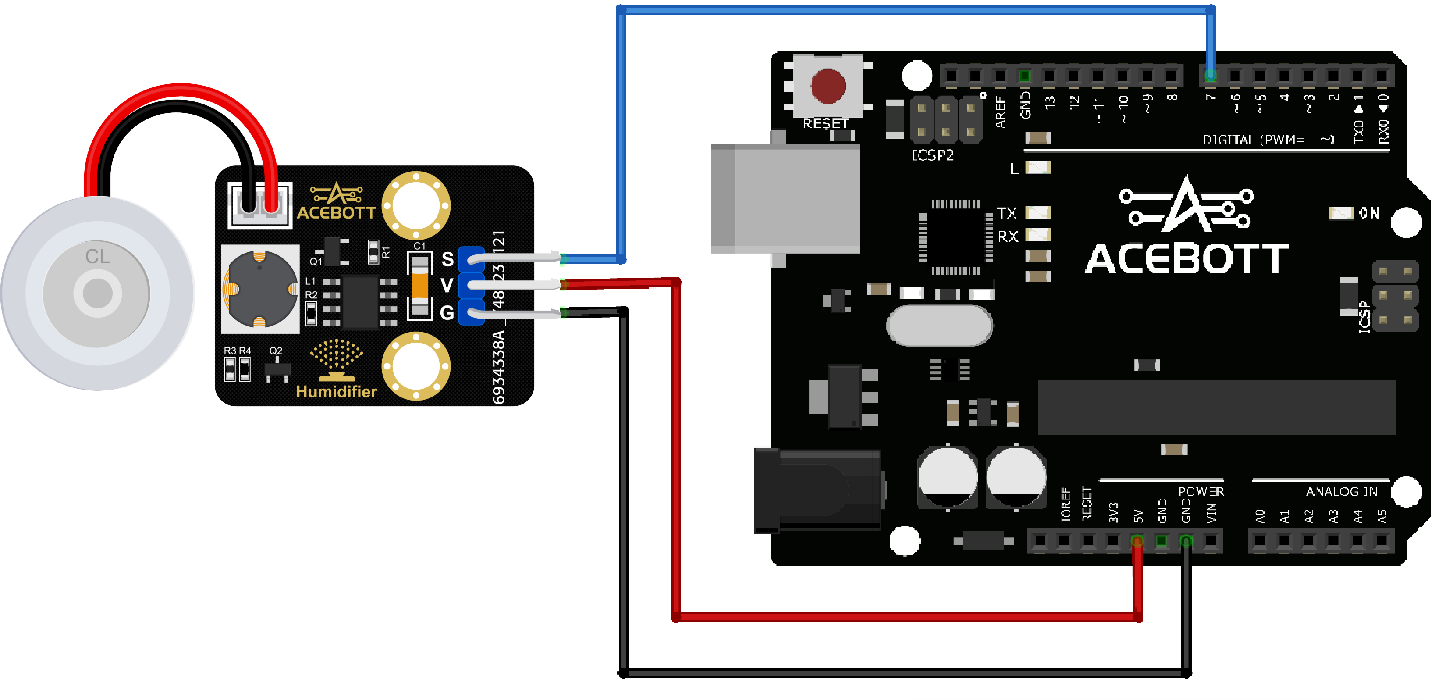

3. Wiring Diagram
| Humidifier Module | UNO |
|---|---|
| VCC | 5V |
| GND | GND |
| S | Digital Pin 7 |
Safety & Tips
- Keep electronics dry. Place only the atomizing plate in water; keep the driver board and MCU away from splashes.

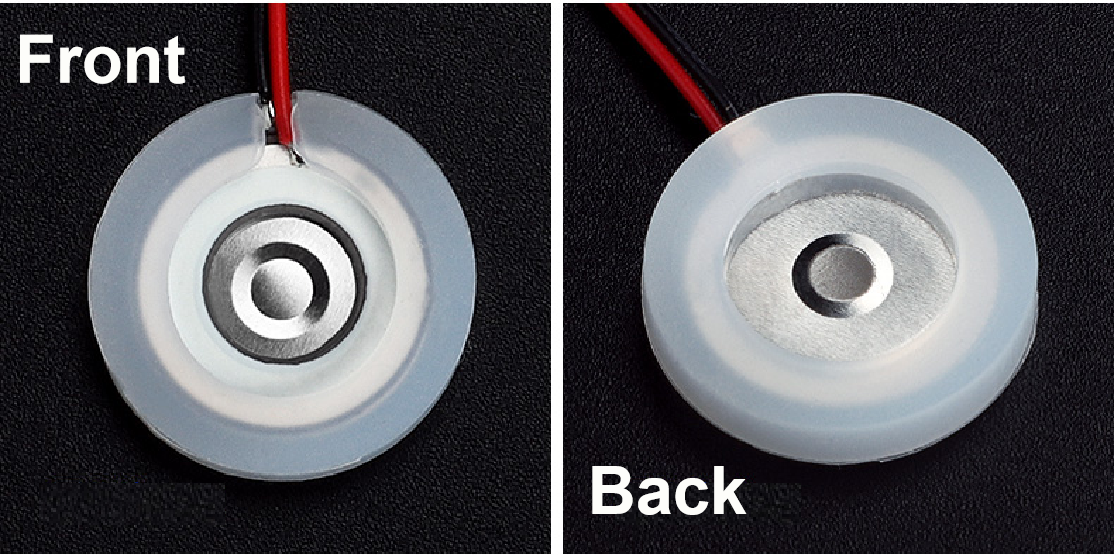

- Observe polarity/orientation: the metal side of the disc faces down (water-absorbing back), ceramic side faces up.
- Use a stable 5V supply with adequate current (≥1A recommended for reliable mist output).
- Do not run the atomizer dry and use clean water to prevent mineral buildup.
4. Sample Code
// www.acebott.com
int humidifierPin = 7;
void setup() {
pinMode(humidifierPin, OUTPUT);
}
void loop() {
digitalWrite(humidifierPin, HIGH); // Turn on the humidifier
delay(5000); // 5 seconds on
digitalWrite(humidifierPin, LOW); // Turn off the humidifier
delay(5000); // 5 seconds off
}
/*
Note: Some driver boards are active-low or edge-triggered.
If mist doesn't start with HIGH, try inverting (LOW = ON),
or send a brief LOW pulse to trigger.
*/5. Test Result

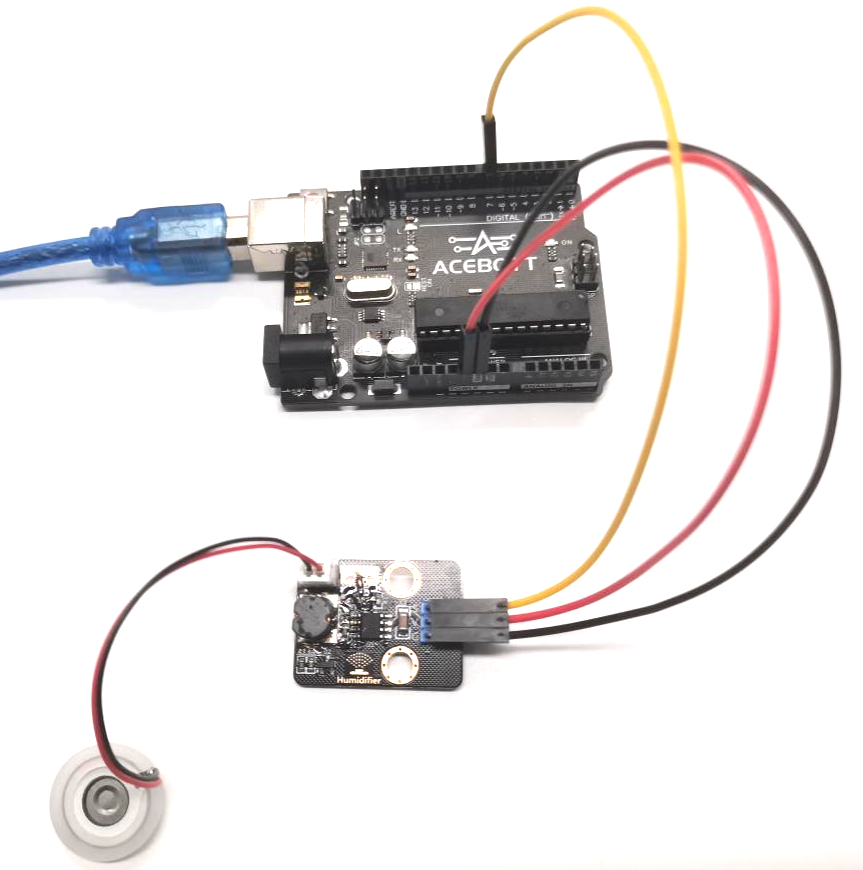

After uploading the code, fill a container with water and place the microporous atomizer face up so the metal side faces down into the water. The module will cycle: mist for 5 seconds, pause for 5 seconds, repeatedly.
Troubleshooting
- No mist: Check 5V supply current, disc orientation, and try inverting the control logic (active-low boards).
- Weak mist: Ensure water level just covers the disc, use clean water, and avoid mineral deposits.
- MCU resets: Power the atomizer from a separate 5V supply and common the grounds.
6. Related Resources
