ACEBOTT Large Capacitive Touch 4*4 Matrix Keypad ModuleEasy-Plug
Need help choosing?Call (+356) 2744 3236 · Mon–Sat 9:00–19:00
WhatsApp us
| BRAND: ACEBOTT |

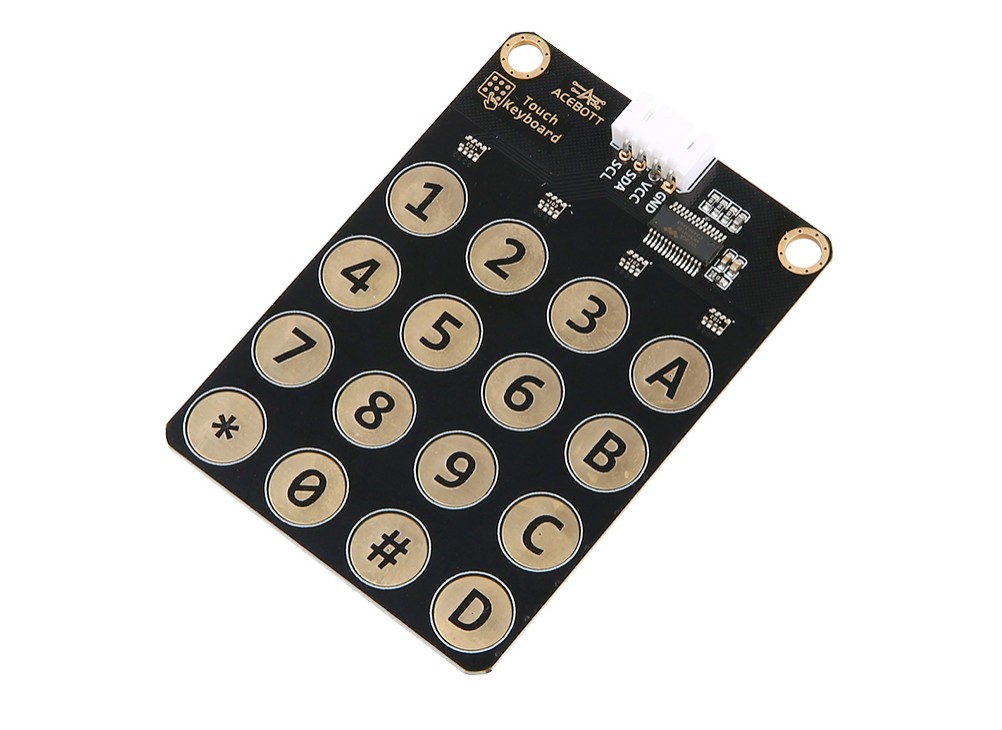

1.Product Introduction
The 4×4 touch keyboard module is an input device used to input data into a computer or other electronic device. Each key of this keyboard is a capacitive touch design, with a layout of four rows and four columns, and each key represents a specific character. When a finger touches a key, it causes a corresponding change in the capacitance of the touch key. Once the detection circuit connected to the key detects this capacitance change, it outputs information that the corresponding key has been pressed.
Application reference: password doors, calculators, ATM machines, mobile phones, etc.
2.Parameter Specification
| Parameter | Value//Description |
|---|---|
| Operating voltage | 3.3V~5V |
| Operating temperature | -40°C~+85°C |
| Communication method | I2C |

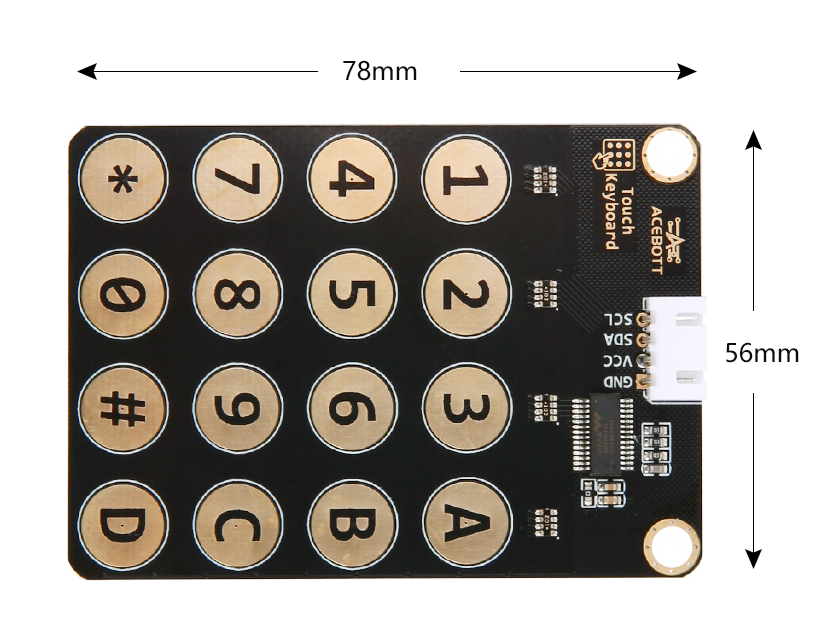

| Size | 5.6cm*7.8cm |

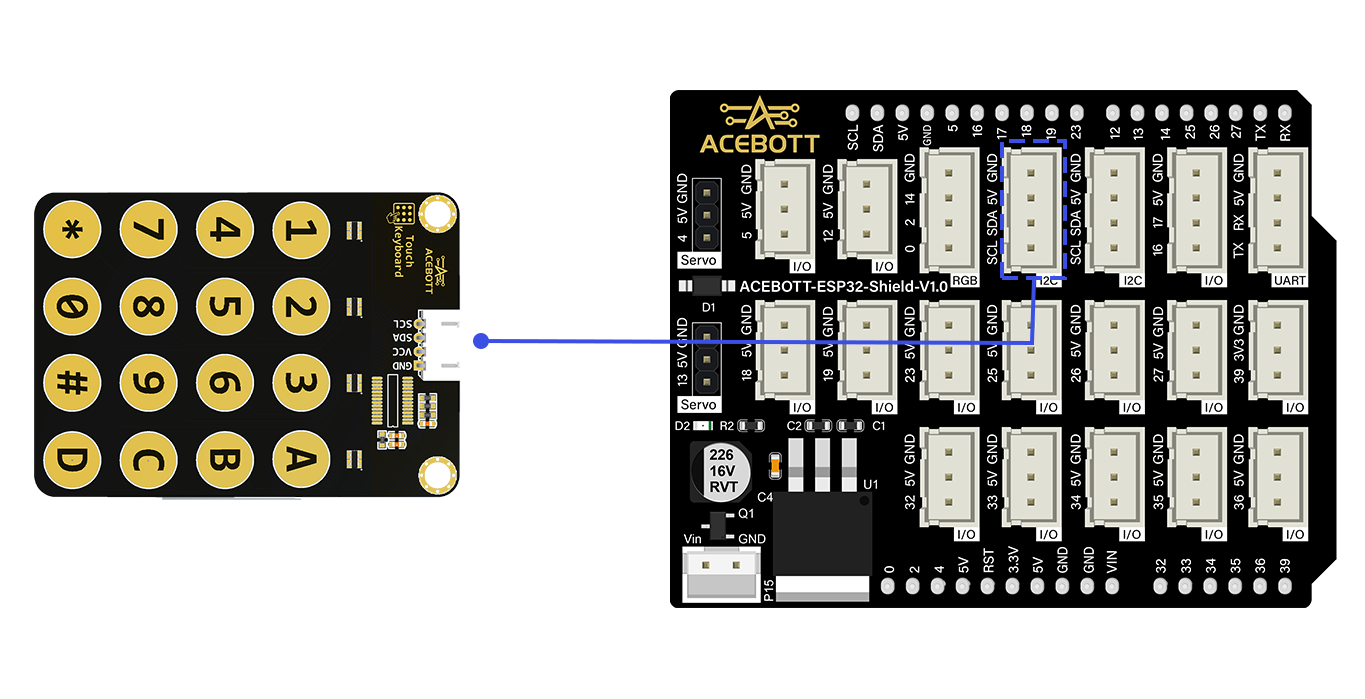

3.Wiring Diagram
| 4×4Touch Keyboard | ESP32 |
|---|---|
| SCL | SCL |
| SDA | SDA |
| VCC | 5V |
| GND | GND |
4.Sample Code
#include <ACB_KeyBoard_I2C.h>
ACB_KeyBoard_I2C kb;//Create a touch keyboard object
void setup() {
Serial.begin(115200);
}
void loop() {
char customKey = kb.getKey();//Get the value of a key
if(customKey){ //Waiting for a key touch
Serial.print(customKey);
delay(500);
}

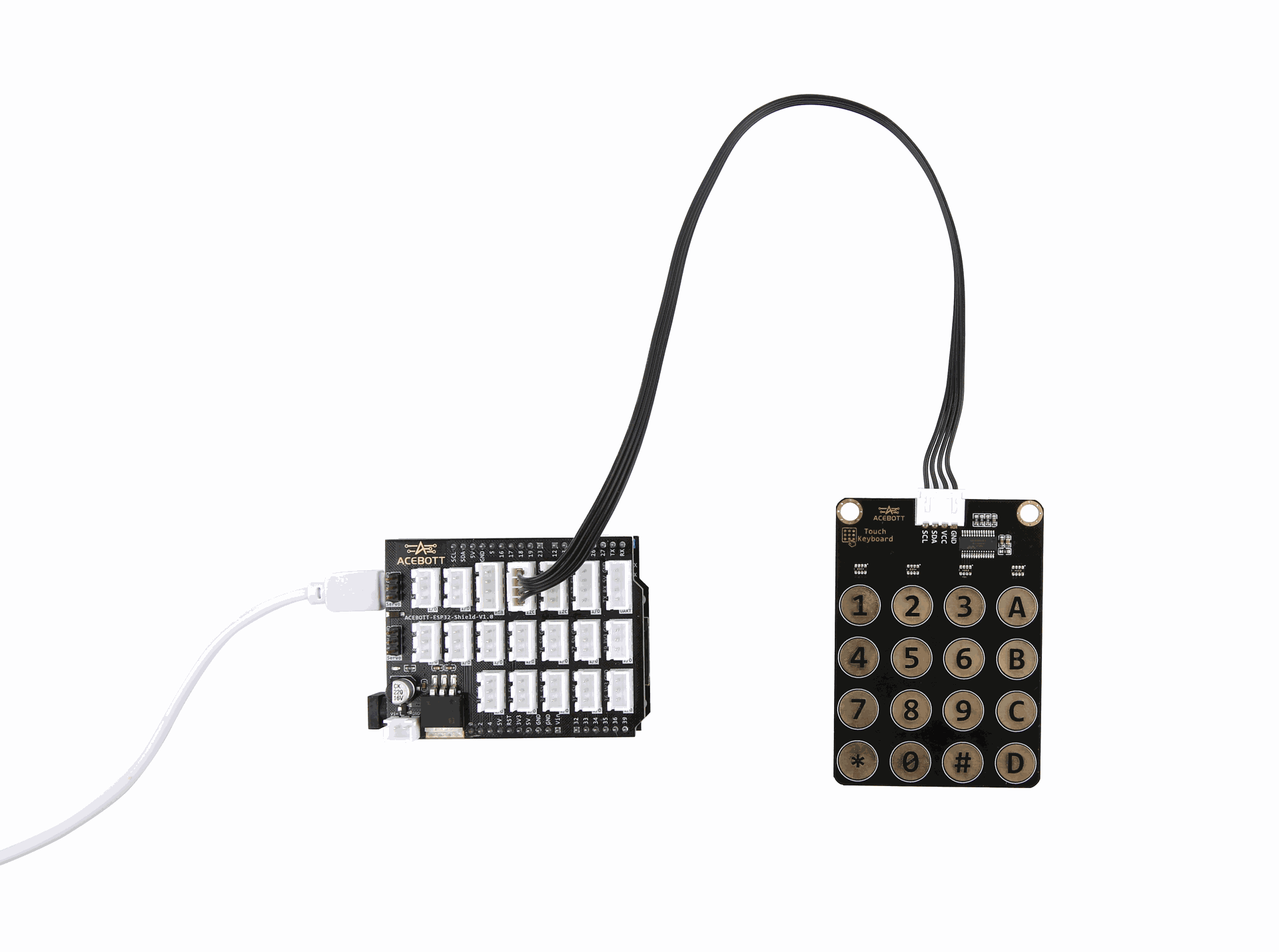

}5.Test Result
After you have successfully connected the circuit according to the wiring diagram and successfully uploaded the correct program, when you touch and press a key, the serial port monitor will print the corresponding key value.
6.Related Resources
7.Get One Now
