ACEBOTT ESP32 CAM V1.0 Development Board with OV2640

https://tekkinnovation.com/web/image/product.template/2060/image_1920?unique=04a9bf1

€ 26.53 26.53 EUR € 27.92

Not Available For Sale

  • BRAND

This combination does not exist.

In stock Out of stock Order now for delivery tomorrow
Pick up in storeQormi and Bugibba · see store stock Same-day deliverySmall items ordered by 3pm, Mon–Sat. Free over € 50.00, else € 5.90.
Warranty & after-sales 14-day returns Secure checkout · PayPal & Viva Wallet
Need help choosing?Call (+356) 2744 3236 · Mon–Sat 9:00–19:00 WhatsApp us
BRAND: ACEBOTT
1

QA011 ESP32 CAM V1.0

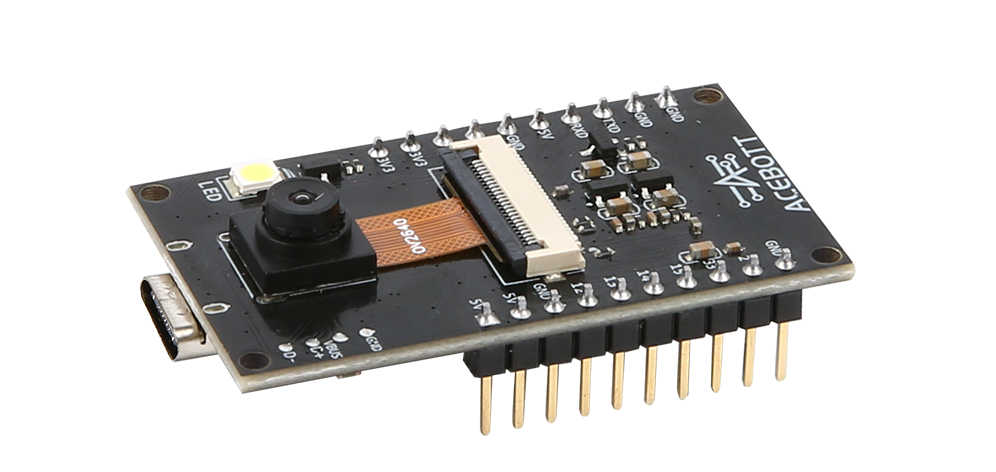

QA011 ESP32-CAM product image 1

1.Introduction

ACEBOTT-ESP32-CAM-V1.0 is the most competitive small size camera module in the industry, which can work independently as the smallest system.

ACEBOTT-ESP32-CAM-V1.0 can be widely used in various Internet of things applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other Internet of things applications.

ACEBOTT-ESP32-CAM-V1.0 adopts DIP package, which can be used directly when it is inserted into the bottom plate to realize the rapid production of products, provide customers with highly reliable connection, and facilitate the application in various Internet of Things hardware terminal occasions.

2.Features

Ultra-small volume 802.11b/g/n Wi-Fi SoC module
The low-power dual-core 32-bit CPU can be used as an application processor
The main frequency up to 240 MHz, computing power up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support for UART / SPI / I2C / PWM / ADC / DAC interfaces
Support for OV2640 and OV7670 cameras, with a built-in flash
Support image WiFI upload
Supports multiple dormancy modes
Lwip and FreeRTOS
Supports the STA / AP / STA + AP working mode
Support Smart Config / AirKiss one-click distribution network

3.Specifications

Parameters Value/Description

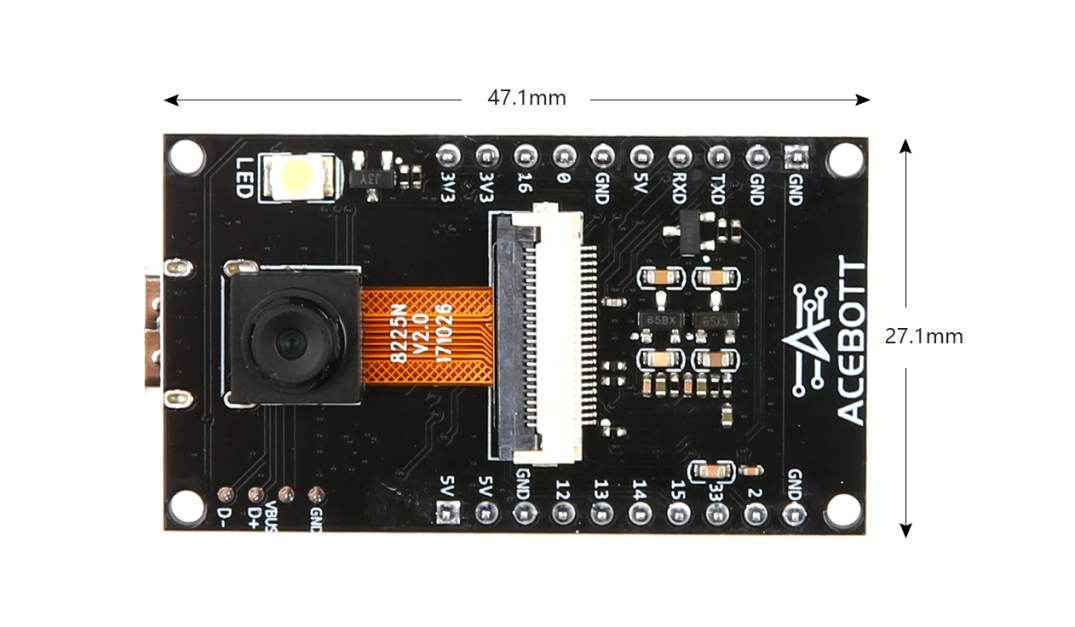

Size27.1×47.1(mm)
EncapsulationDIP-20
Power supplyType-c
Support interfaceUART/SPI/I2C/PWM
Number of IO ports10
Serial port baud rateSupport 110 ~ 4608000 bps, Default 115200 bps
SPI FlashDefault 32Mbit
Image output formatJPEG (supported by OV2640 only), BMP, GRAYSCALE
Spectrum range2400~2483.5MHz
Antenna formExternal PCB antenna, gain 2 dBi
Power consumption Turn off the flash:180mA@5V
Turn on the flash light and adjust the brightness to the maximum:310mA@5V
Deep-sleep: The lowest power consumption can reach 6 mA@5V
Moderm-sleep: The minimum level is 20 mA@5V
Light-sleep: The minimum value can reach 6.7 mA@5V
SecurityWEP/WPA-PSK/WPA2-PSK
Power supply range4.75-5.25V
Operating temperature-20 °C ~ 70 °C
Storage environment-40 °C ~ 1250 °C,<90%RH

4.Sample Code

Connect the board to the computer using a Type-C data cable: Select “ESP32” -> “ESP32 Dev Module” from the Tools > Board menu. Choose the appropriate Port. And upload it to the board using the Upload button.

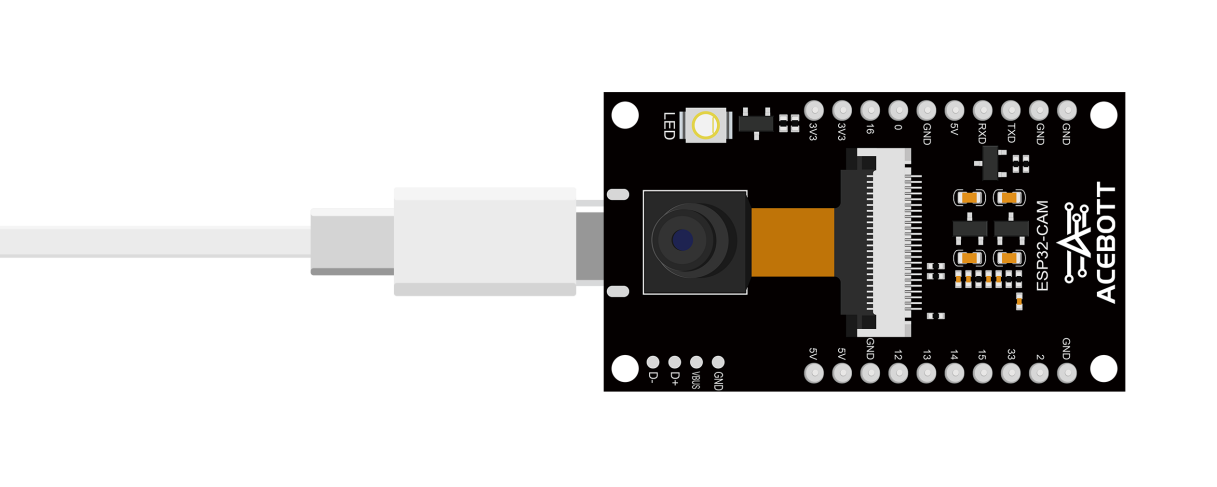

(1)Wiring Diagram

QA011 ESP32-CAM wiring diagram
5. Instructions
https://acebottteam.github.io/acebott-docs-master/board/ESP32/QA011%20ESP32%20CAM%20V1.0.html
