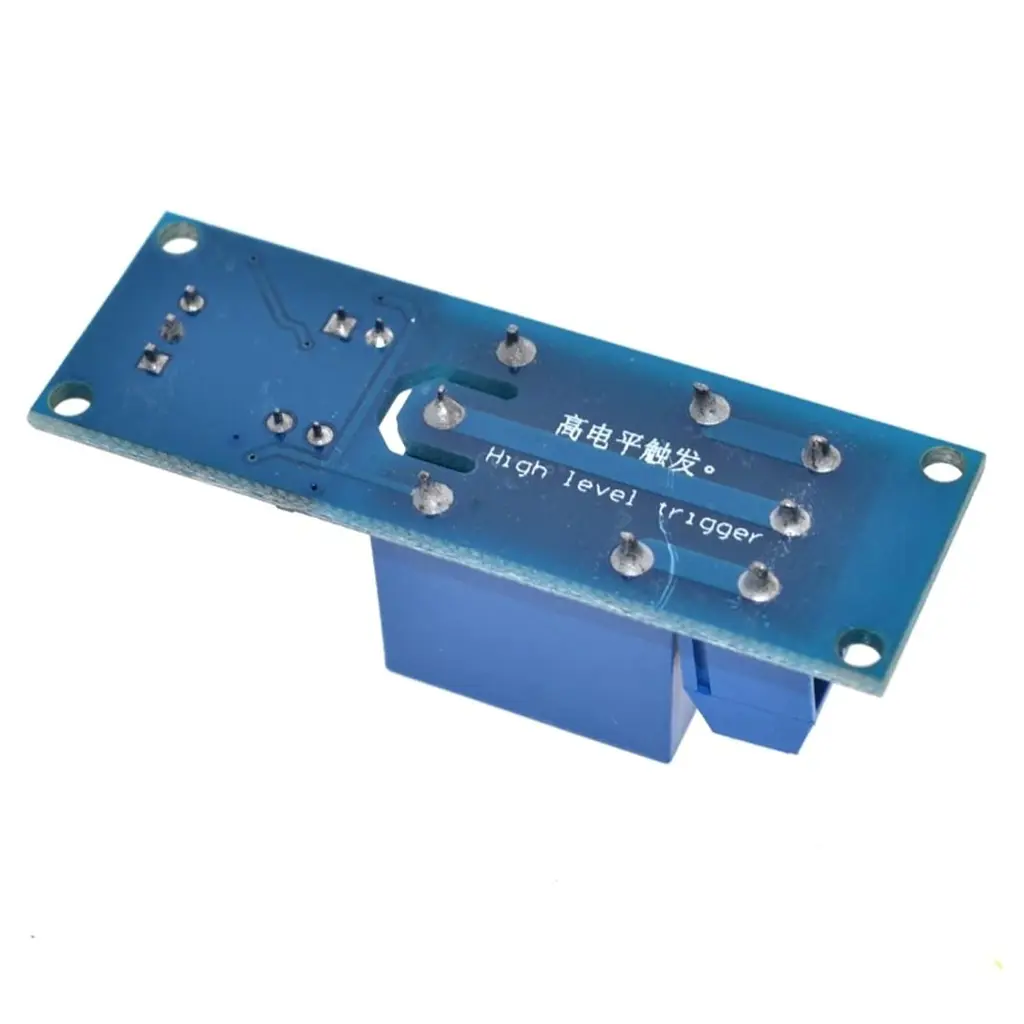

Electrical Isolation
An isolation groove separates the control and load areas to support safer operation.
Same-day delivery across Malta on orders before 3pm
MonβSat Β· 9:00β19:00
Same-day delivery across Malta Β· order by 3pm
Shop by category
%Deals & Back to SchoolHomeShop
TV
Solar Energy
Home & Office
Gaming
Electronics & Projects
Network
Cameras

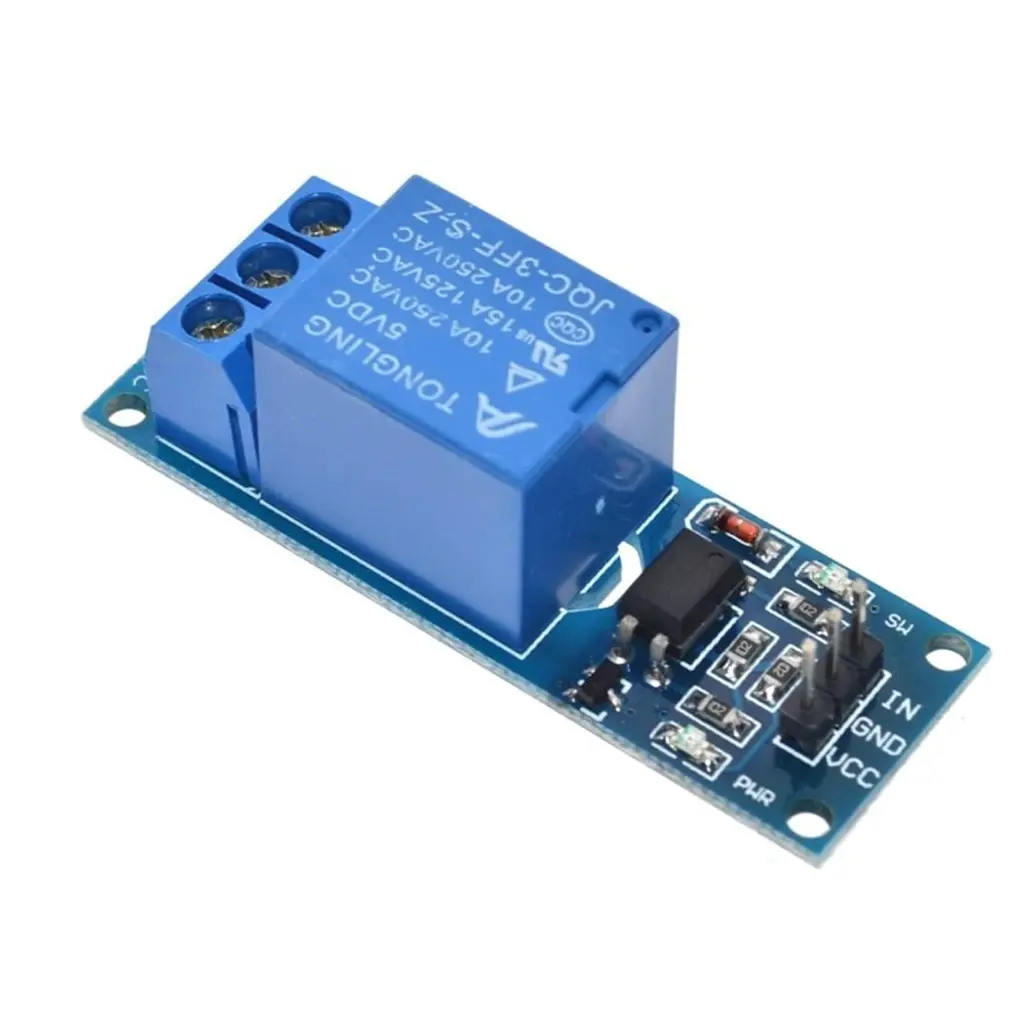

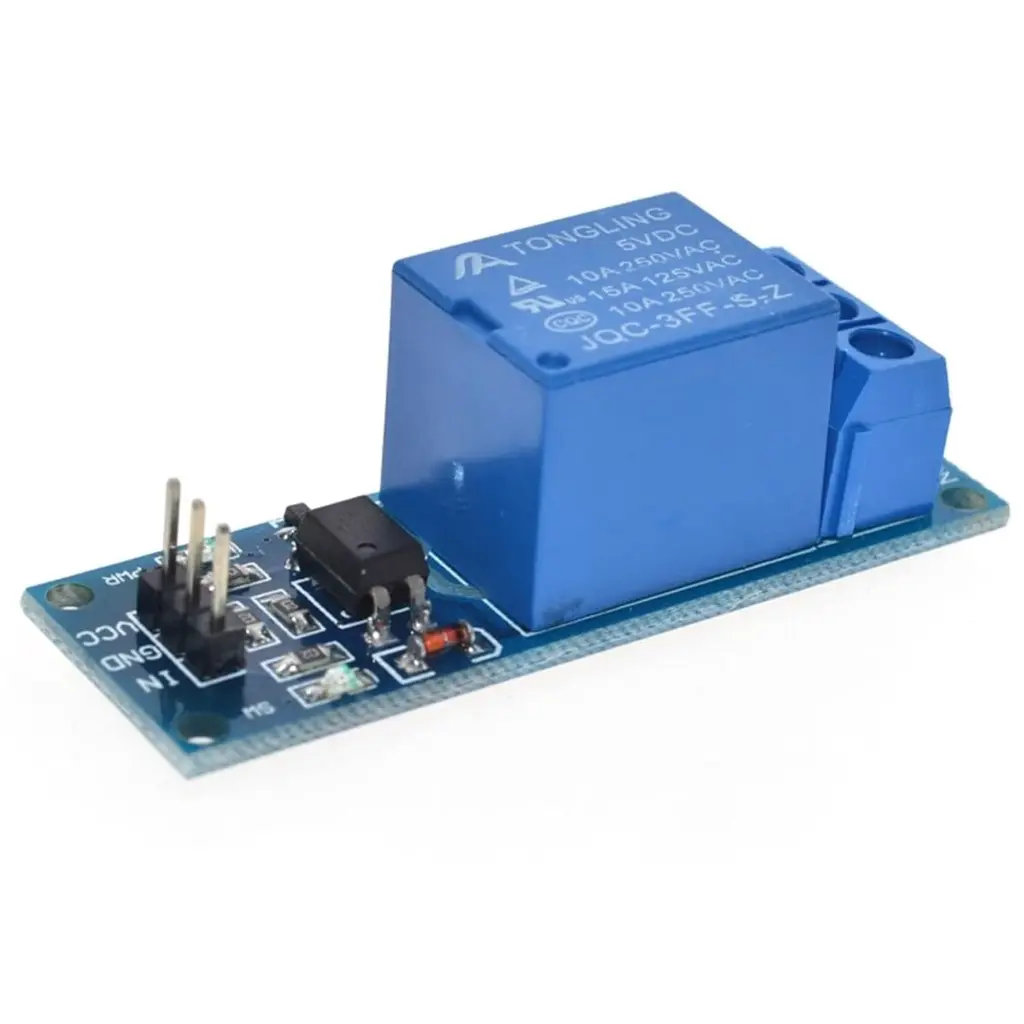

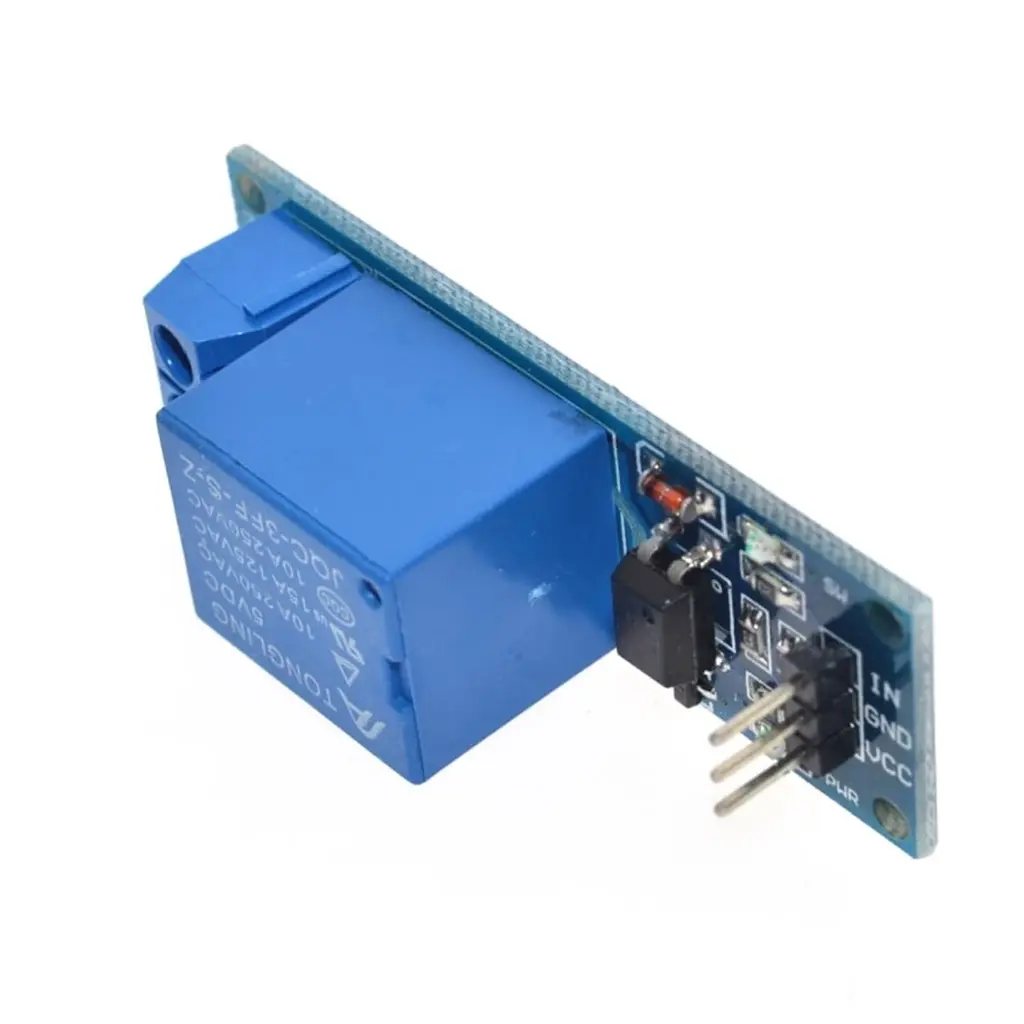

1 Relay Module With 5V Optical Coupling
Need help choosing?Call (+356) 2744 3236 Β· MonβSat 9:00β19:00
WhatsApp us
Overview
| Operating Voltage | 5V, 9V, 12V, or 24V depending on version |
|---|---|
| Trigger Type | High-level signal |
| Electrical Parameters | 5V: 4 mA static, 65 mA operating, 2-5V trigger, 2 mA trigger current 9V: 5 mA static, 45 mA operating, 4-9V trigger, 3 mA trigger current 12V: 5.5 mA static, 42 mA operating, 4-9V trigger, 3 mA trigger current 24V: 12 mA static, 35 mA operating, 8-24V trigger, 3 mA trigger current |
| Relay Contacts | COM, NO, and NC |
| Contact Rating | Up to 10A at 250V AC or 30A at 30V DC |
| Recommended Load | AC: Below 1500W DC: Below 200W |
| Board Material | Double-sided FR-4 PCB |
| Dimensions | Approx. 53 Γ 18 Γ 18.5 mm |
| Weight | Approx. 16 g |
Optocoupler-Isolated Control Module
Single-Channel High-Level Trigger Relay Module
A compact relay module designed for electrically isolated switching of appliances, lighting, motors, and other compatible AC or DC loads. Available in multiple operating-voltage versions.
Product Features
Optocoupler Protection
Optocoupler isolation helps provide stable, reliable triggering while separating the input circuitry.
Durable Construction
Manufactured using a double-sided FR-4 circuit board and a high-quality SMT assembly process.
Status Indicators
Integrated LEDs provide clear visual indication of module power and relay operating status.
High-Level Trigger
The relay is controlled by applying a compatible positive high-level signal to the input terminal.
Flexible Relay Contacts
Provides common, normally open, and normally closed contacts for different switching configurations.

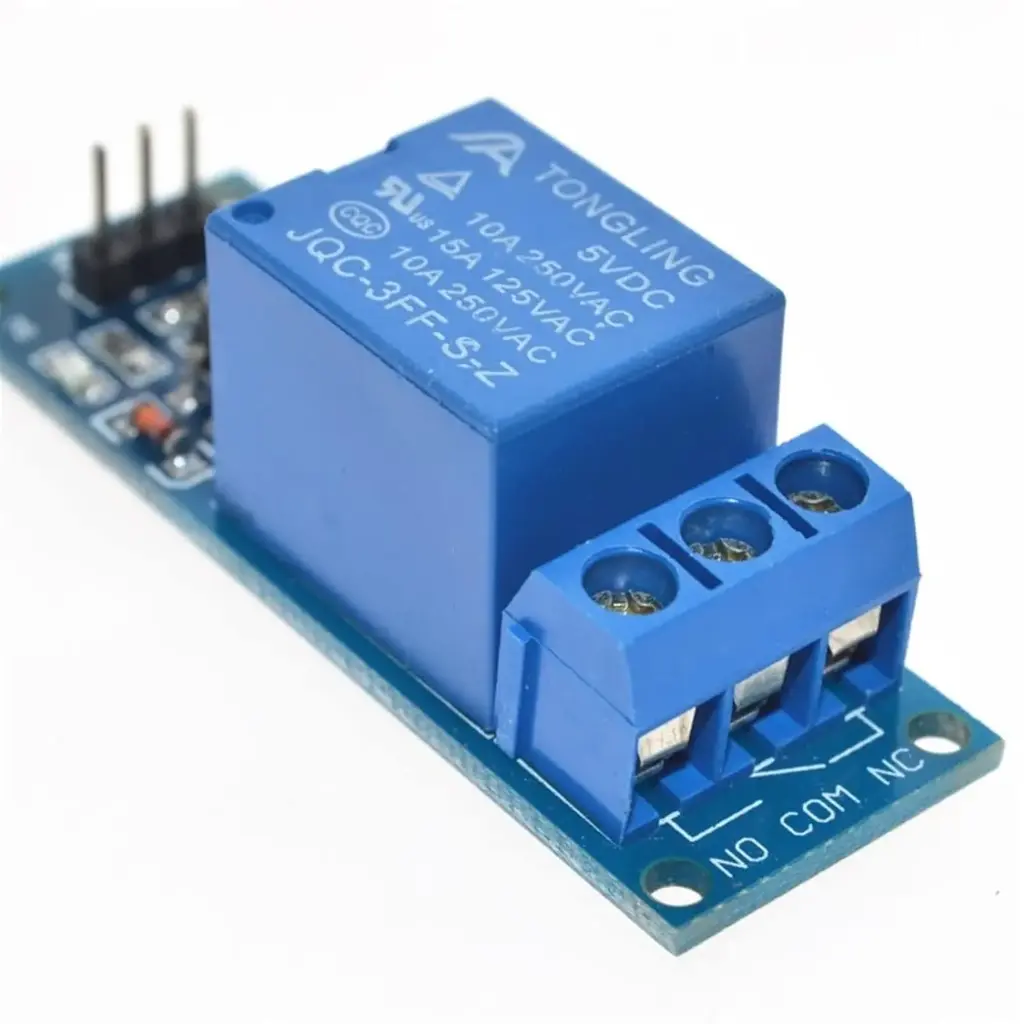

Convenient Terminals
Blue KF301 screw terminals allow secure and convenient connection of load wiring.
Specifications
Module Type
Single-channel optocoupler-isolated relay module
Trigger Type
High-level signal trigger
Voltage Versions
5V, 9V, 12V, or 24V depending on the selected module version
Relay Contacts
Common, normally open, and normally closed
Module Dimensions
Approximately 53 Γ 18 Γ 18.5 mm
Net Weight
Approximately 16 g
Board Material
Double-sided FR-4 printed circuit board

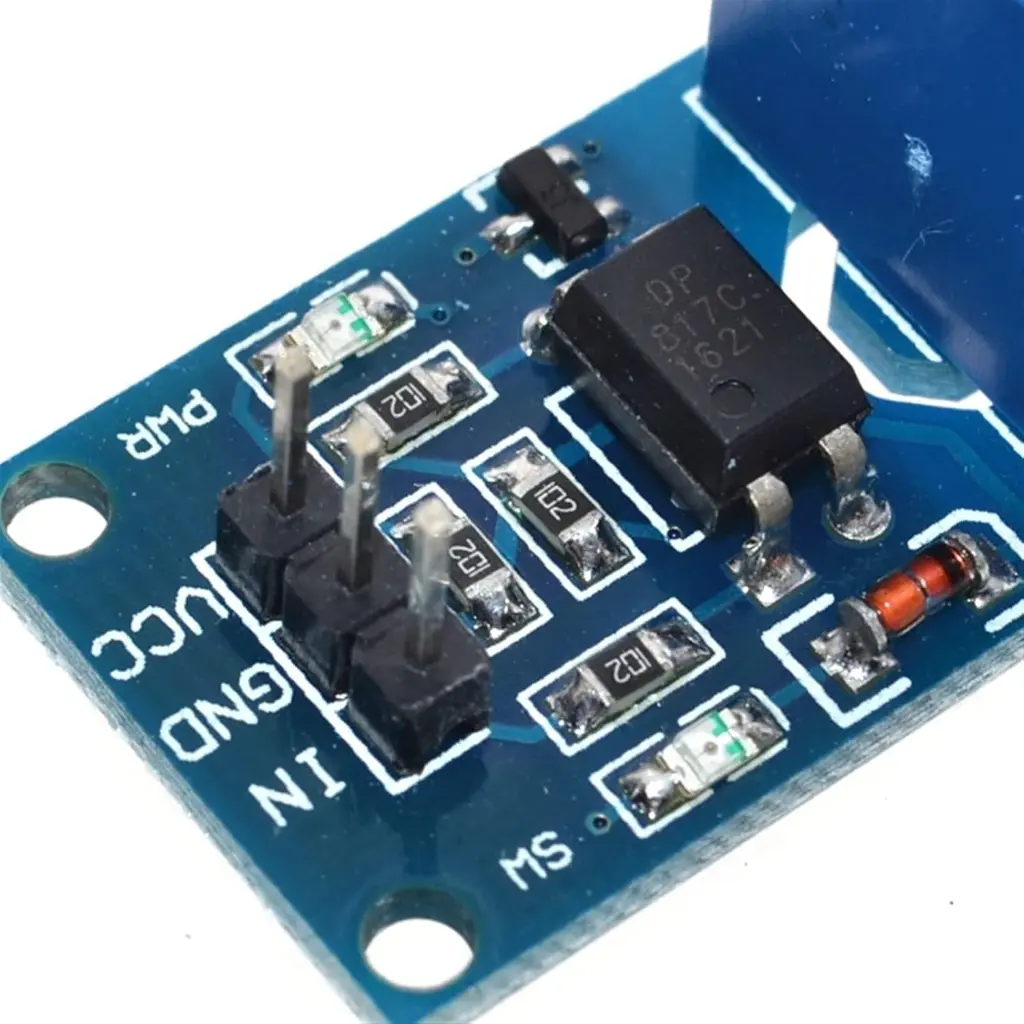

Module Interface
VCC
Positive power input. Connect a supply matching the rated voltage of the selected relay module.
GND
Power-supply ground or negative connection
IN
High-level trigger-signal input for relay control
COM
Common relay-contact terminal
NO
Normally open contact; connects to COM when the relay is activated
NC
Normally closed contact; disconnects from COM when the relay is activated
Electrical Parameters
5V Version
Static current: 4 mA Β· Operating current: 65 mA Β· Trigger voltage: 2β5V Β· Trigger current: 2 mA
9V Version
Static current: 5 mA Β· Operating current: 45 mA Β· Trigger voltage: 4β9V Β· Trigger current: 3 mA
12V Version
Static current: 5.5 mA Β· Operating current: 42 mA Β· Trigger voltage: 4β9V Β· Trigger current: 3 mA
24V Version
Static current: 12 mA Β· Operating current: 35 mA Β· Trigger voltage: 8β24V Β· Trigger current: 3 mA
Contact Rating
Manufacturer-stated maximum: 10A at 250V AC or up to 30A at 30V DC under theoretical conditions
Recommended AC Load
Below 1500W
Recommended DC Load
Below 200W
